Analog Output
User specified, ±5 VDC or ±10VDC typical, ±10.8VDC rail
Digital Output
24 bit high speed Ethernet output with built-in web interface
Linearity
11 point linearization, ≤0.15% of full scale typical
Resolution
<55 PPM (0.006%FS) RMS @ 4 kHz, <6 PPM (0.0006%FS) @ 100 Hz
Analog Filter
Selectable 100 Hz analog and 2 Hz – 3 kHz digital filters
Temperature Range
Ambient to 700 °C (1300 °F). Use up to 800 °C is possible – contact Epsilon for details. Springs may require periodic adjustment or replacement after long-term testing above ~600 °C.
Temperature Sensitivity (Gain)
<100 PPM / °C (0.01%FS/°C) typical
Sensor Cable
0.7 m (2.5 ft) tri-axial high temperature cable, plus 1.5 m (5 ft) room temperature extension cable
Output Cable
Flexible 2.4 m (8 ft) analog output cable

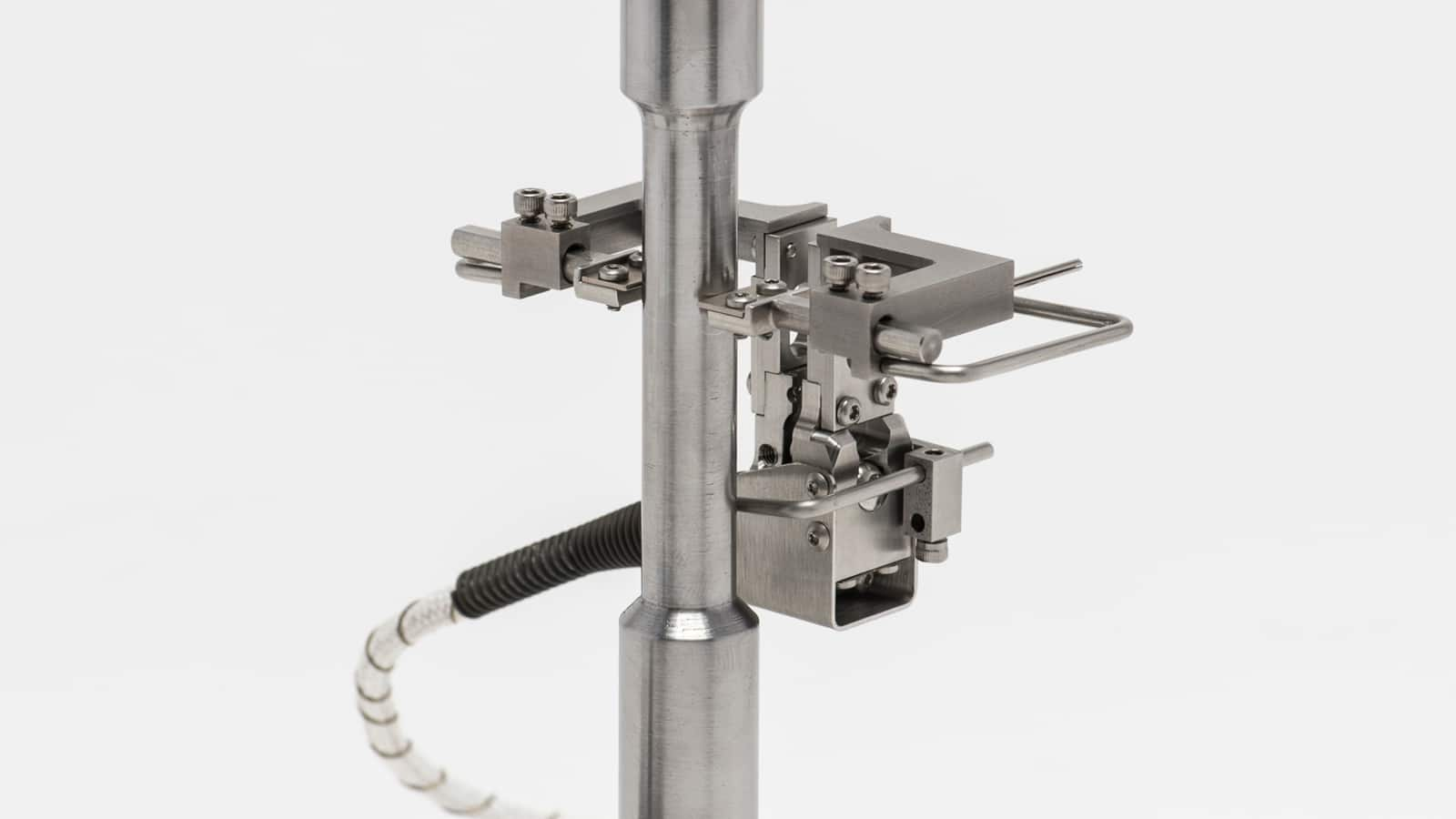

Specimen Size
Fits round samples up to 25 mm (1.0 inch) diameter and flats up to 25 mm (1.0 inch) wide
