Excitation
5 to 10 VDC recommended, 12 VDC or VAC max.
Output
2 to 4 mV/V nominal, depending on model
Accuracy
Standard configurations meet ASTM E83 class B-1 accuracy requirements for gauge lengths ≥6 mm and class B-2 for ≤5 mm. All standard configurations meet ISO 9513 class 0,5. A test certificate is included.
Linearity
≤0.15% of full scale measuring range
Temperature Range
Standard (-ST) is -40 °C to +100 °C (-40 °F to 210 °F)
Cable
Integral, ultra-flexible cable, 2.5 m (8 ft) standard

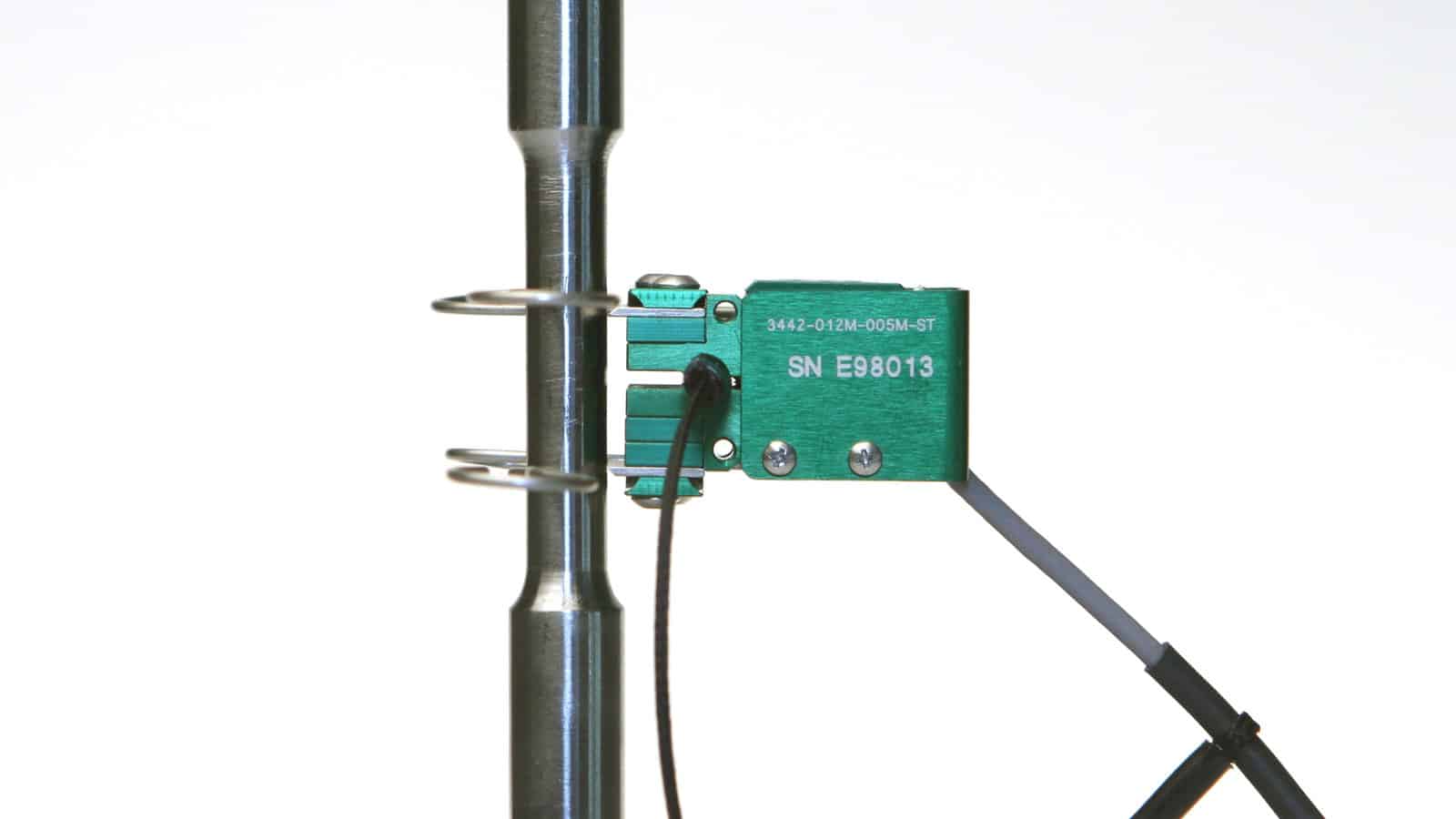

Standard Quick Attach Kit
Fits round samples 0.5-13 mm (0.02-0.5 inch) diameter and flats 0.1-13 mm thick by up to 15 mm wide (0.005-0.5 inch by up to 0.6 inch); attach to larger specimens using rubber bands or springs (included)
Operating Force
Depends on model configuration; 10 to 100 g typical
